Study Buddy

The shared framework for EMBA 8160 (Fall 2026). Each student designs their own AI study buddy in their own n8n instance. This application supplies the user interface and the resources around it: chat, forms, files (CubeFS), database (PostgreSQL) and GitLab sync.

The site are reachable on campus or over the VPN only!

Documentation at n8n Documentation

Additional Links:

• Institute for Insight Computing Resources (ARC)
• Chnage your ARC password
• GSU Virtual Private Network (VPN)
• O’Reilly via GSU Library

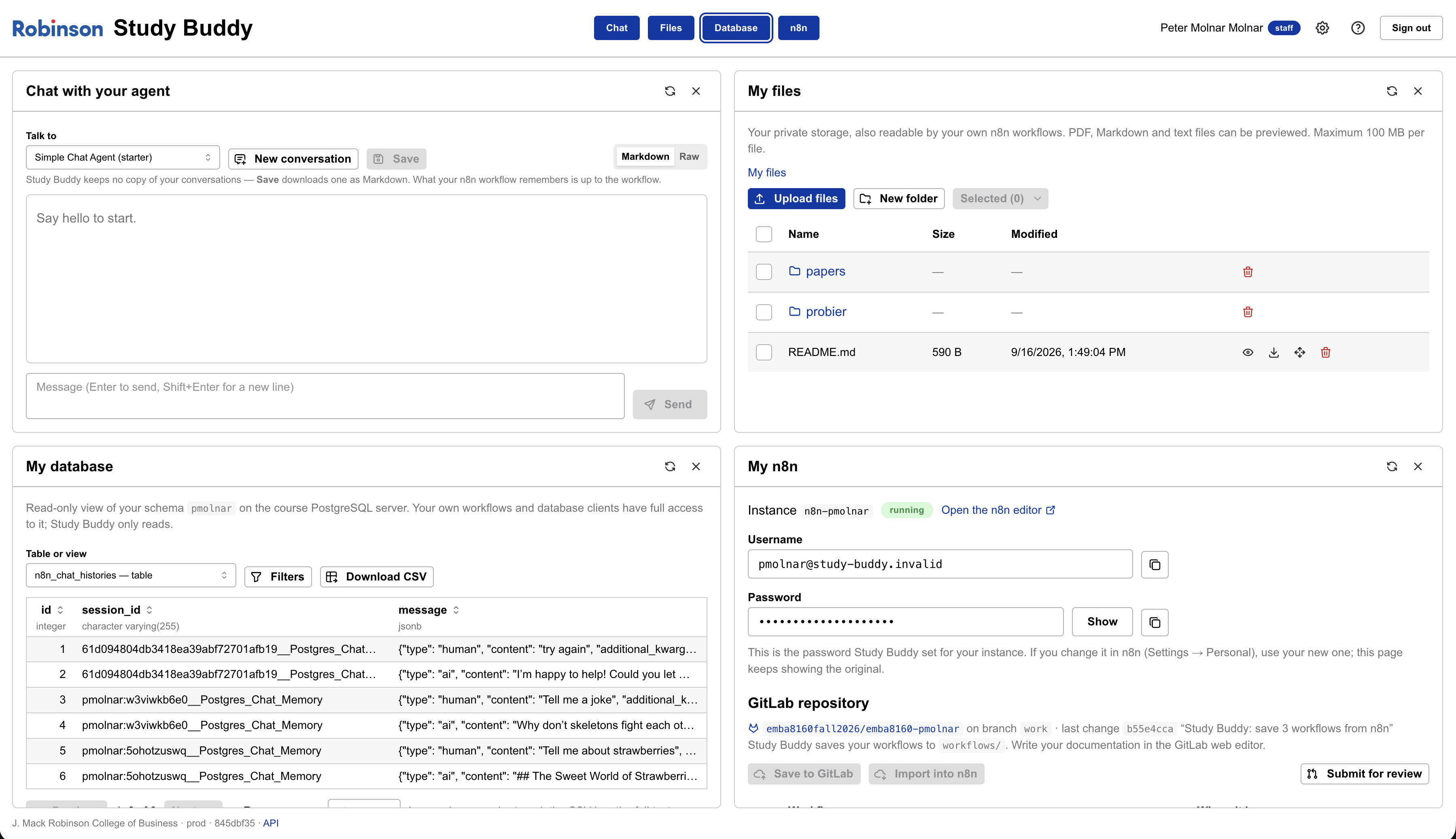

User Interface

Study Buddy

The browser-based application manages the resources of the agentic system behind a simple user interface.

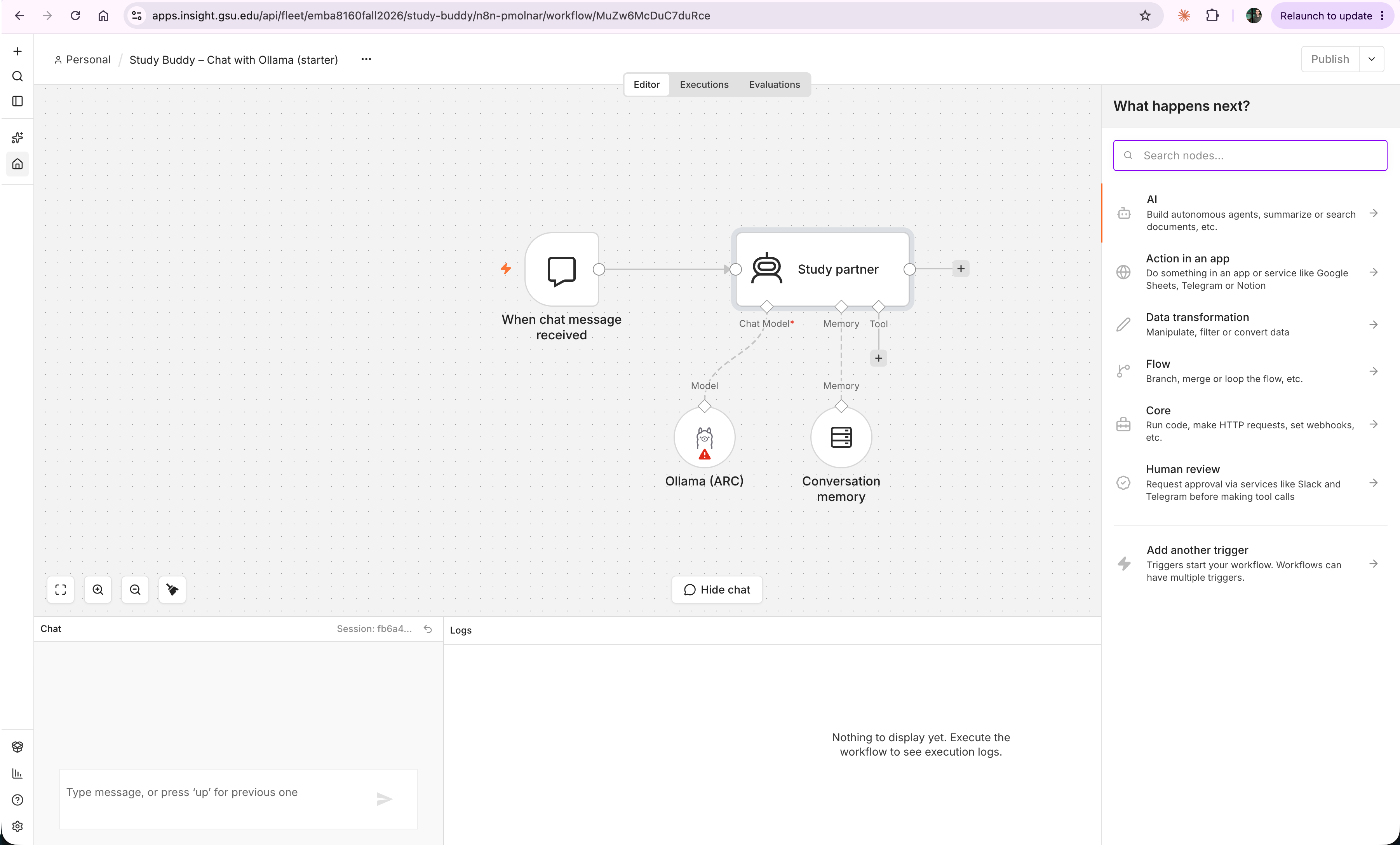

n8n — Agentic Workflow Designer

The n8n framework provides the environment in which students implement agentic workflows.

Architecture

One backend deployment serves everyone, and every resource it touches is derived from the session uid, never from the client. Below, {uid} is the LDAP username and {env} the environment: the app’s own path drops it on prod (/emba8160fall2026/study-buddy/), the /api/… paths always carry it.

flowchart TB
  subgraph client["Student browser — on campus or VPN"]
    SPA["React SPA<br/>chat · forms · files · tables · repo"]
    ED["n8n editor tab"]
  end

  subgraph gw["apps.insight.gsu.edu — Duo gateway → nginx on server-11"]
    W["www reservation<br/>/{env}/emba8160fall2026/study-buddy/"]
    S["service reservation<br/>/api/{env}/emba8160fall2026/study-buddy/n8n-{uid}/<br/>prefix rewritten away"]
  end

  BE["Backend — FastAPI, serves the SPA bundle too<br/>systemd study-buddy-{env}-backend<br/>session cookie only, no tokens stored"]
  N8N["n8n-{uid} — one container per student<br/>127.0.0.1:port · own owner password"]
  ST["state mount, read-only<br/>/n8n · /n8n-fleet"]
  KC["Keycloak — server-9<br/>realm insight"]

  subgraph res["The student's own resources — chosen by the session uid, never by the client"]
    PG[("PostgreSQL 18<br/>writer → study_buddy_app<br/>reader → student schemas")]
    S3[("CubeFS S3<br/>volume emba8160fall2026-{uid}")]
    GL["GitLab git.insight.gsu.edu<br/>emba8160-{uid} · workflows/ on work"]
  end

  CI["GitLab CI — nightly repo-sync"]

  SPA -->|"./api/… page-relative"| W
  ED --> S
  W --> BE
  S --> N8N
  ST -.->|"internal URL, API key, webhook secret"| BE
  BE -->|"chat SSE · forms · REST API"| N8N
  BE -->|"OIDC code flow"| KC
  BE --> PG
  BE --> S3
  BE --> GL
  N8N -.->|"the student's own credentials"| S3
  CI -.->|"exports workflows as the bot"| GL

• One origin. nginx forwards the app’s full path unstripped and ProxyPrefixMiddleware handles it, so the SPA calls ./api/… and the bundle carries no baked-in URL.
• n8n is never exposed directly. Instances listen on 127.0.0.1 only; the browser reaches the editor through the gateway, and the backend reaches the instance over the podman network (http://study-buddy-{env}-n8n-{uid}:5678). The dev/staff instance is n8n-test in env dev; the student fleet lives in env fleet.
• Nothing about a conversation is kept. The chat relay stores and logs no message text, form values or replies, and no file name, repository path or SQL appears in logs or audit rows.
